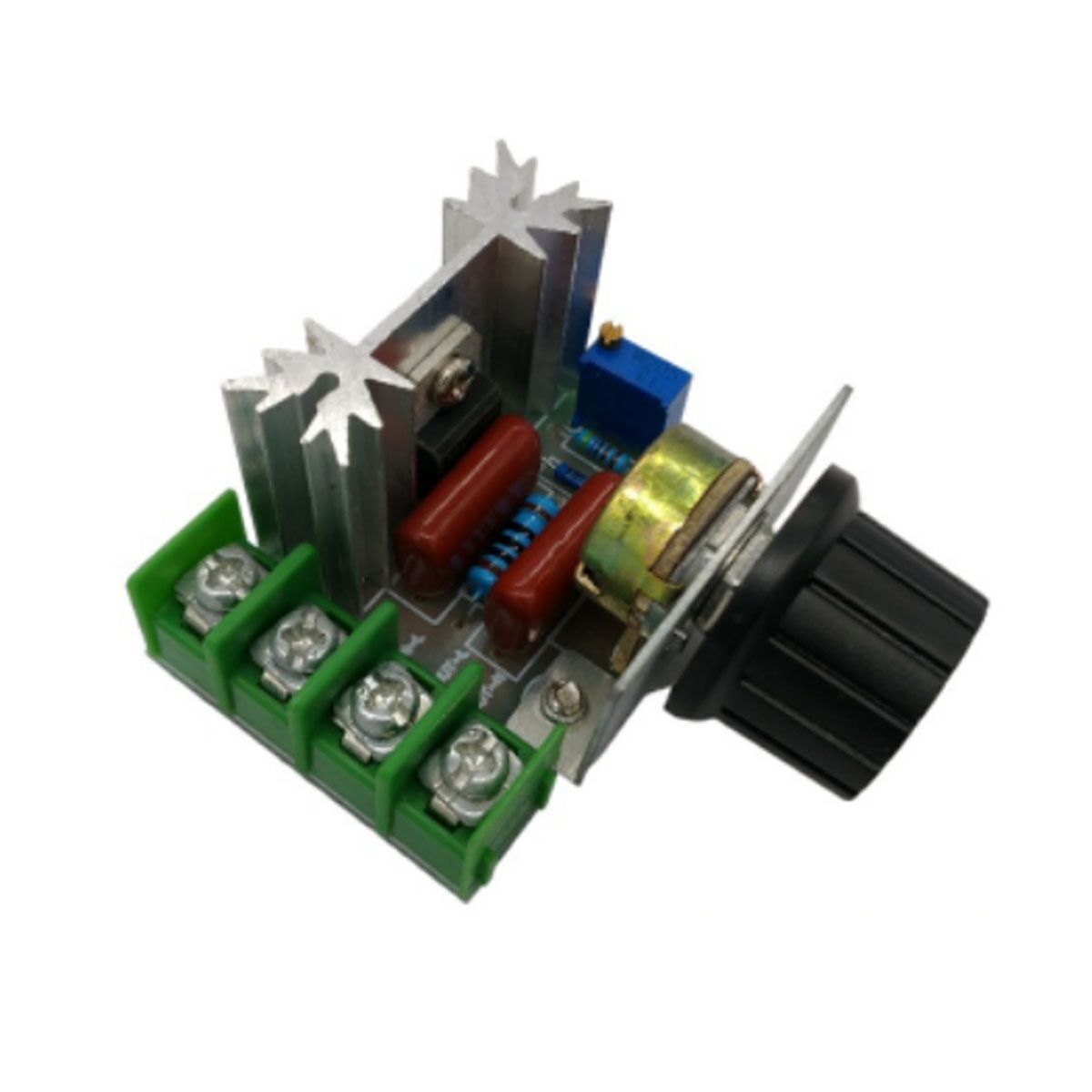

2000W high-power silicon controlled electronic voltage regulator, temperature regulator, voltage regulator, light regulator ac
2000W high-power silicon controlled electronic voltage regulator, temperature regulator, voltage regulator, light regulator ac.
Additional information
| SKU | GA004 |
|---|---|
| MOQ | 1 |
| Availability | In stock |
Product Details:
1. Input voltage: AC 220V
2. Voltage regulation: 50V-200V
3. Maximum power: 2000W
4. Maximum current: 25A
5. Operating temperature: -40°C~ 125°C
Note: This module is connected with 220V AC voltage, so the adjustment
Be sure to pay attention to safety when trying to prevent electrocution accidents,
We are not responsible for any accident or accident.
Features:
1. The module adopts imported thyristor, which can withstand up to 1200 VOLTS
2. The voltage regulator with wave peak voltage absorption circuit effectively protect the high-power silicon controlled,
Long life and more durable.
3. Voltage regulator can adjust the lowest output voltage by precision multi-turn potentiometer
4. ST original imported trigger diode
5. High quality CBB capacitor, withstand dc voltage 63OV
6 potentiometers with nuts, without adding any components can be used
9. Module size: 60mm* 48mm* 28mm (length * width height)
10. Net weight: 43g
Application:
The use of new bidirectional high-power thyristor, current up to 25 a, a good solution to the electric furnace wire in the case of cooling resistance is too small to cause the overcurrent problem; It is very convenient to adjust the output voltage of the mains, which can be arbitrarily adjusted between 50-220 VOLTS for use by the power supply.
Such as; Electric furnace, water heater, lighting dimming, small motor speed regulation, electric iron temperature regulation, etc. So as to achieve the effect of dimming, temperature regulation, pressure regulation. Can supply power less than 2000 watts of large electrical appliances because the power has been very large, so the general household appliances or small factories enough to use. (Inductive or capacitive load power should be reduced, the regulator is equipped with bidirectional high-power silicon controlled, potentiometer with nuts, without adding any components can be used, very convenient and practical.
