Mega2560 Pro Development Board ATmega2560-16AU USB-CH340G

Categories ,

Mega2560 Pro Development board ATmega2560-16AU USB-CH340G Intelligent electronic development board.

Additional information






In stock

Product Details:

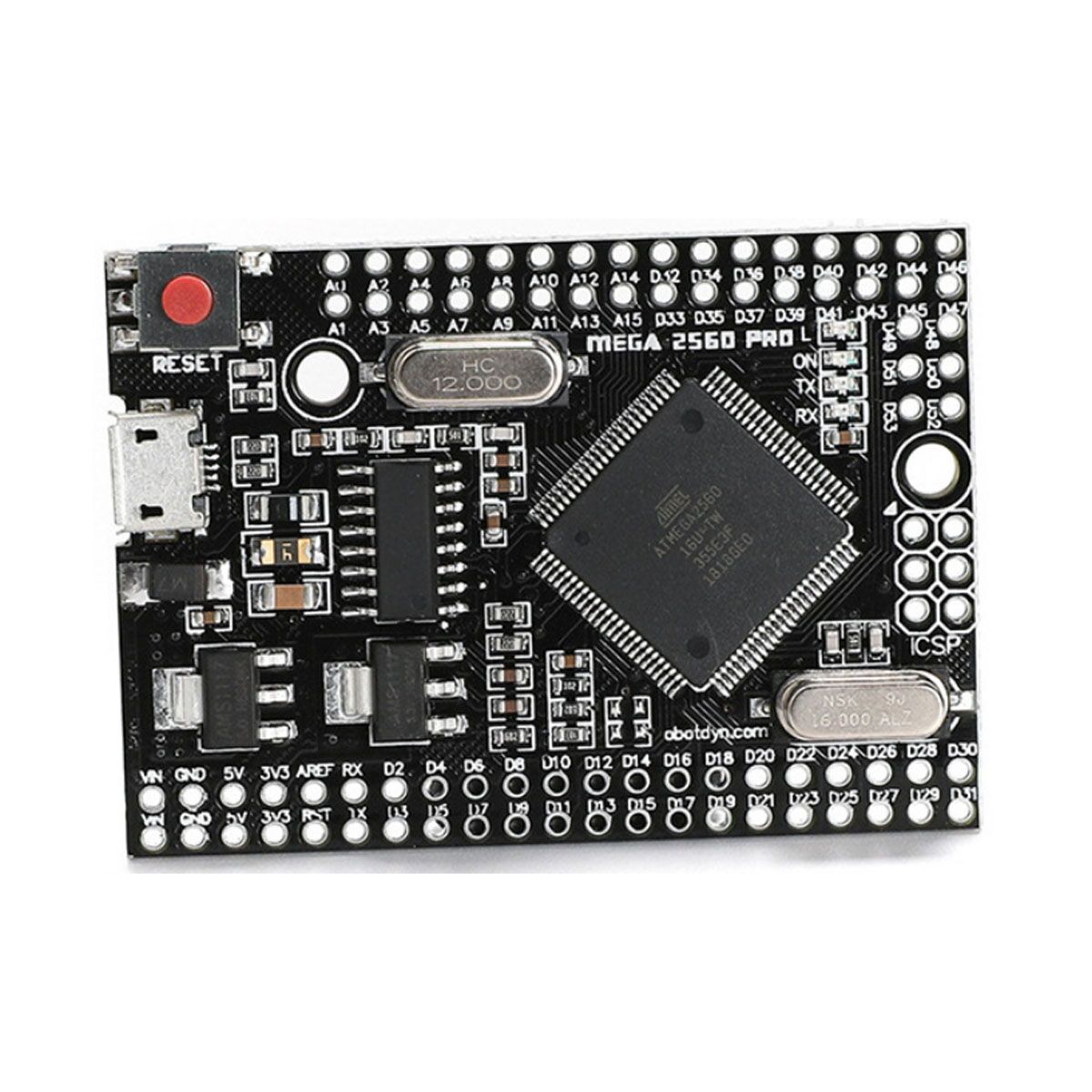

Embedded version Mega 2560 CH340G / ATmega2560 – Compatible with Mega 2560 motherboard. Built on the Atmel ATmega2560 microcontroller and USB-UART interface chip CH340G.

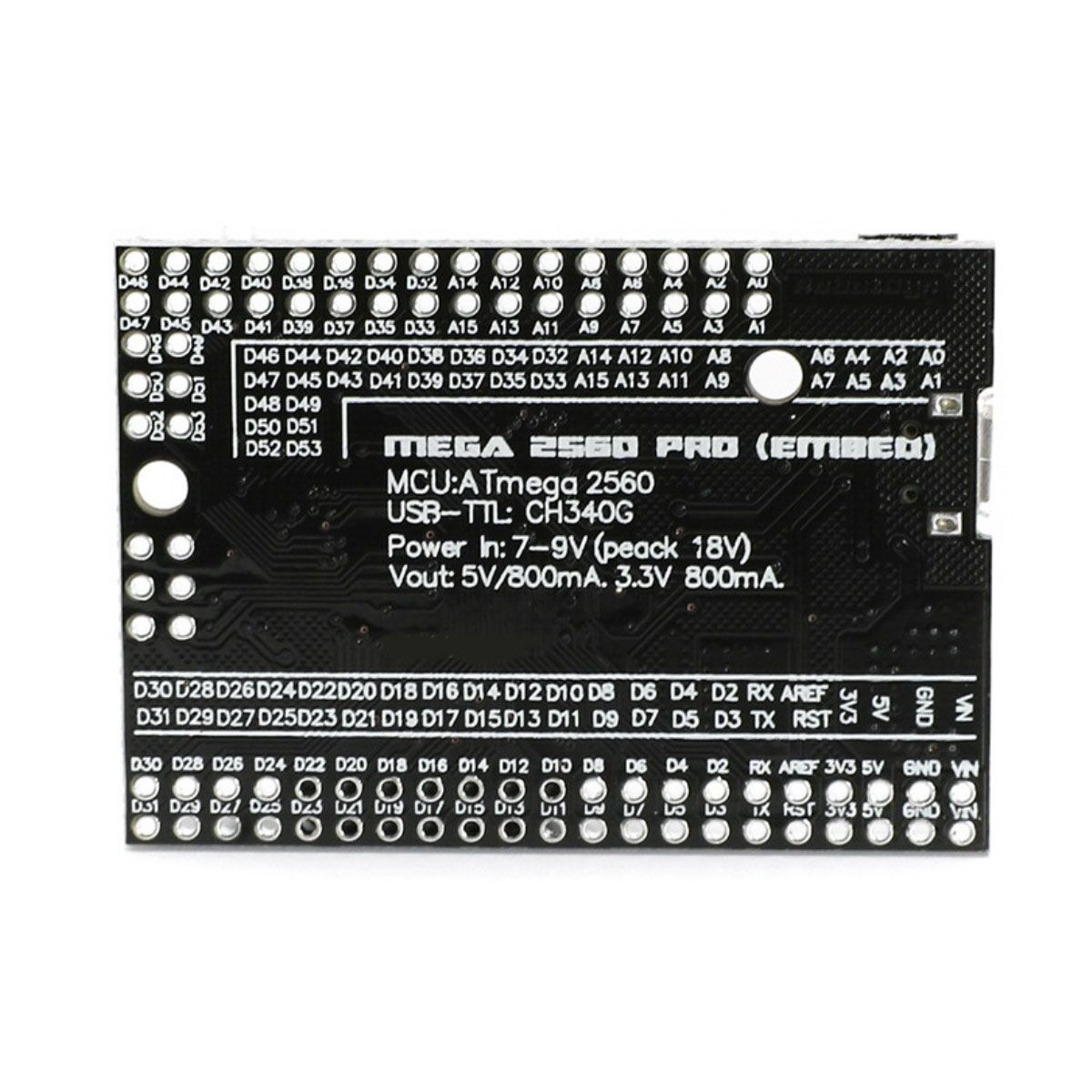

The board is compact and measures 38x55mm. This is a great solution to get your final project on the welding prototype board.

The motherboard functions like the Arduno Mega 2560. It is an embedded motherboard, but it is also stable and uses the original chip ATmega2560 (16 MHz).

The board uses the chip CH340G as the converter UART-USB. Provides a stable data exchange result when you work at a frequency of 12Mhz (requires driver to be installed to the computer).

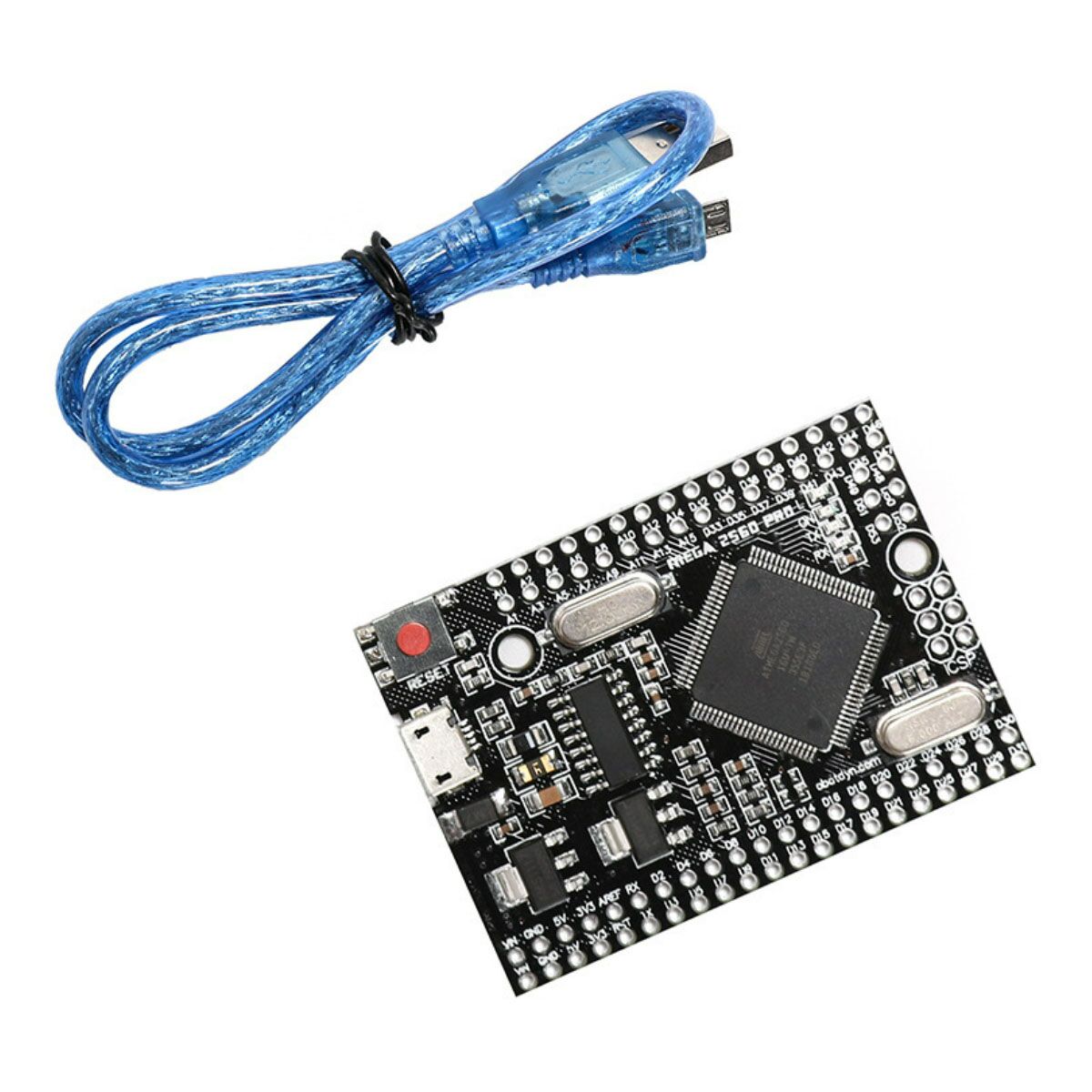

Mega PRO (embedded) 2560 CH340G / ATmega2560 – Connect to a computer via a microUSB cable (almost for all Android smartphones).

You can power the board or power the pins through the MicroUSB connector. The voltage regulator (LDO) can handle input voltages from 6V to 9V (peak 18V) DC. The output current is 5V – about 800mA, 3.3V – about 800mA (note that the higher the input voltage, the lower the output current). This will provide reliable power for most of your initial projects.
