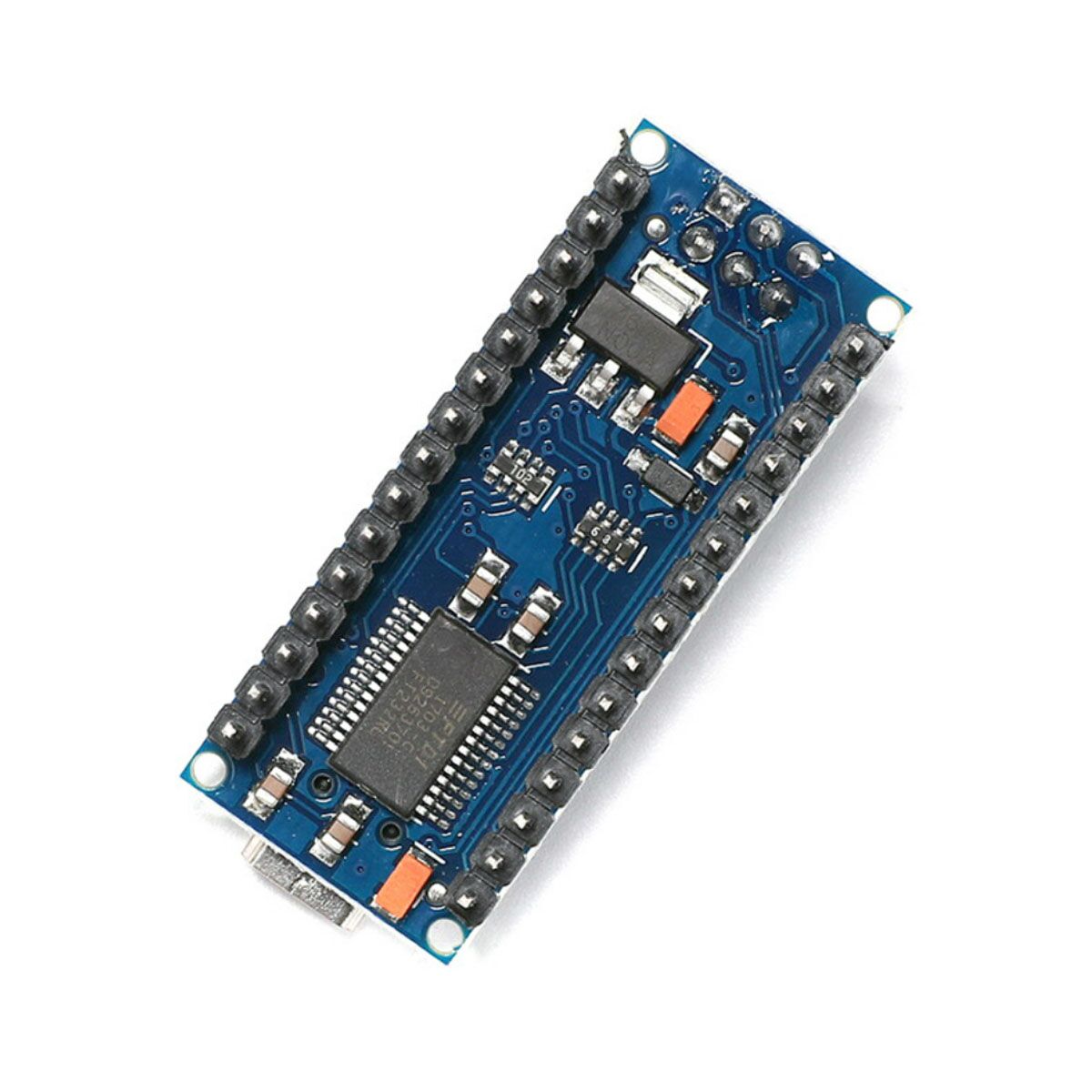

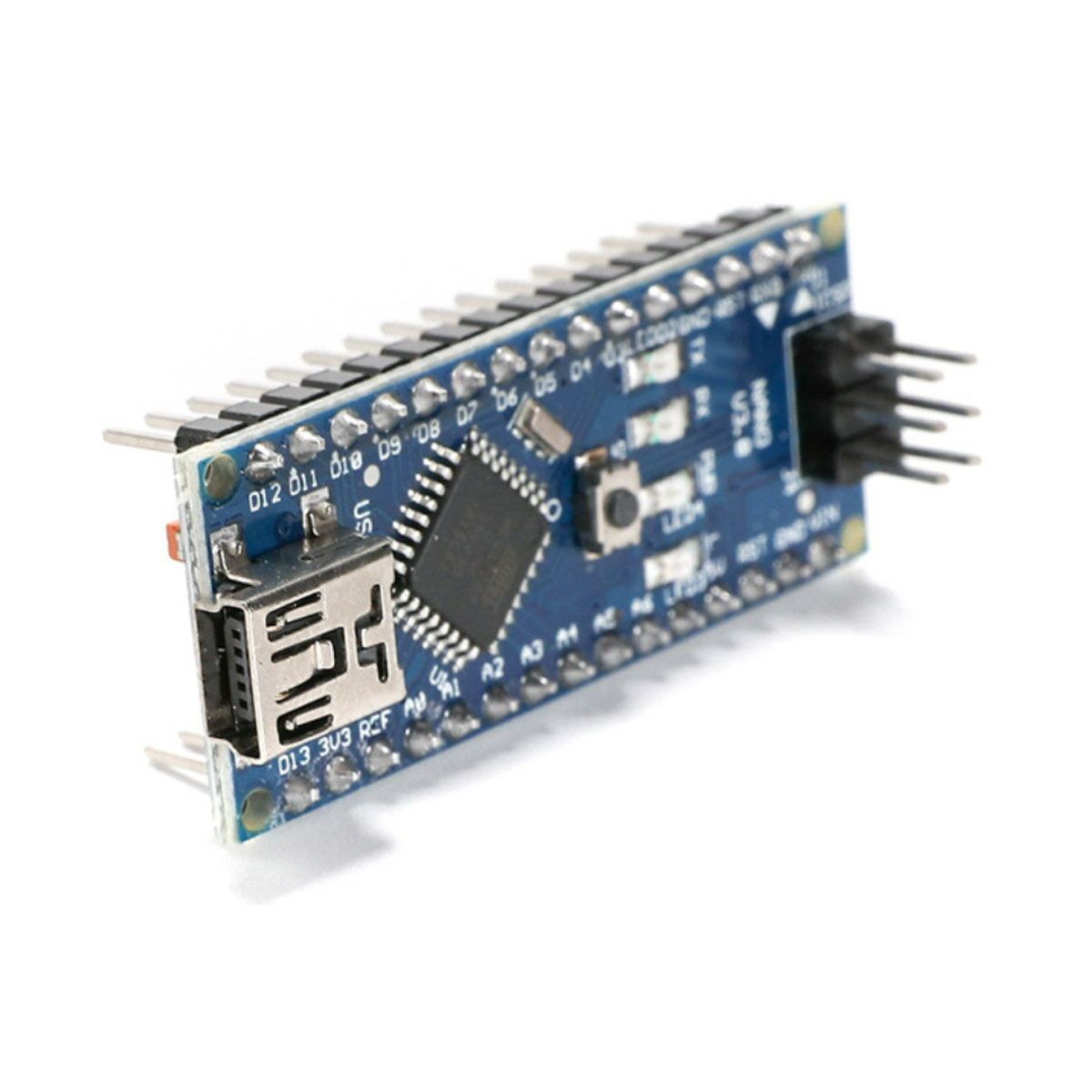

Nano V3.0 ATmega328P

Nano V3.0 is a super small Simple I/O platform based on open original code. Compared with the previous USB version of Diecimila, Nano has a great advantage in volume, that is, it can be used to develop independent operation and interactive electronic products; It can also be used to develop interactive works that are connected with computers and completed in collaboration with Flash, Processing, Max/Msp, PD, VVVV and other software.

Technical parameters of Nano:

1. 14 digital input/output ports TX,RX,D2 to D13,

2. Eight analog input ports A0-A7

3. 1 RX/TX port for sending and receiving TTL levels

4. 6 PWM ports, D3, D5, D6, D9, D10, D11

5. Using Atmel ATmega328P-AU microcontroller

6. Support USB download and power supply

7. Supports 5V to 12V external dc power supply

8. Supports 9V battery power supply

9. Support ISP download

10. Three power supply modes: USB, VIN, external 5V input
